Bandsaw Machine

Bandsaw Machine
Bandsaw Machine
Product Code : BSM 30
Brand Name : ESS KAY LATHE & MACHINE
Product Description

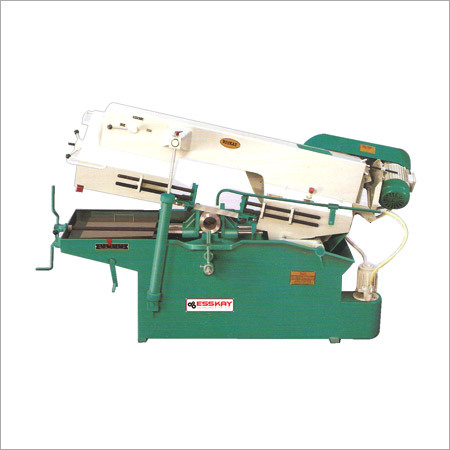

Bandsaw Machine

Having a sound technological expertise and experience, we possess a strong hold in the field of manufacturing and exporting an advance range of Bandsaw Machine. Manufactured by using top quality raw material and components, these boring machines are ideal to operate against tough working condition. Embedded with oil field gearbox and hydraulic cylinder and other requisite accessories, Bandsaw Machine is used in steel industry for cutting long bars into different shapes.

Bandsaw Machine Features

  • Ruggedly constructed
  • Operating noiselessly
  • Low maintenance

LK-1 HS For the use of Bi-Metallic Bandsaw Blades

STADARD FEATURES & ACCESSORIES

  • Complete With Electrical ie., Saw drive Electric Motor Coolant Pump, On off Contacter with Push Buttons
  • V-belt Pulleys With V-belt
  • Job Stopper
  • Oil Field Gearbox & Hydraulic Cylinder
  • Friction Type Chip Removal Wire Brush
OPTIONAL ACCESSORIES
  • Chip Removal Wire Brush
  • Bi-Metal Bandsaw Blades
  • Carbon Steel Bandsaw Blades
  • Job Roller Stand
  • Mechanical Job Feeder Unit

 BANDSAW MACHINE-DETAILS

SPECIFICATION

LK-1 HS

LK-251 HS

LK-2 HS

CUTTING CAPACITY




Round (mm)

205

250

315

Square (mm)

175x175

225x225

2758x275

Rectangle (mm)

220x100/200x150

250x175

300x250

Blade Dimensions (mm)

3000x27x0.9

3300x27x0.9

3760x27x0.9

Power Req (440 V AC, 50Hz)

1.0 HP

1.5 HP

2.0 HP

Dimensions (LxWxH) Mtr.

1.7x0.6x0.9

1.8x0.7x1

2.4x0.9x1.1

Net Weight (Kg)

320

375

760
