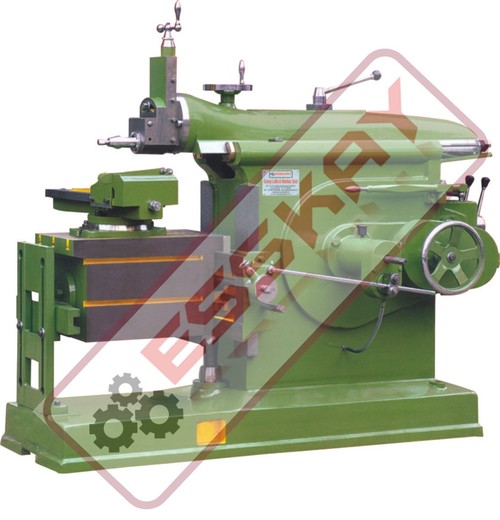

Geared Shaper Machine

Geared Shaper Machine
Geared Shaper Machine
Product Code : GSM 26
Brand Name : ESS KAY LATHE & MACHINE
Product Description

In this engineering industry, our name is celebrated as one of the fastest growing manufacturers and exporters of advance quality Geared Shaper Machine. Designed and developed using quality tested material like En8, En9 and mild steel, these offered machines provide superior functionality and efficiency. Equipped with automatic tool lifting device, our Geared Shaper Machine is extensively used in Indian defence, steel, sheet metal industries and shaping industries for different applications.

Key Feature

  • Easy to operate
  • Operating noiselessly
  • Ergonomically designed

All Geared Shapere Machines EAS

Standard Accessories

  • Automatic lubrication Pump
  • Swivelling Vice
  • Crank Handle
  • Motor Pulley

Extra Accessories

  • Key way cutting attachment
  • Automatic tool lifting device
  • Automatic feed to the tool slide
  • Rapid feed system with control panel
  • Allen key set
  • V-belts
  • Screw driver
  • Electric motor & starter with fitting & wirings
  • Spanner set
  • Oil Can
  • Tool box

Model

EAS-18

EAS- 24

EAS- 30

EAS- 36

EAS- 42

A-Capacity

450

600

750

900

1050

Length of Ram Stroke

475 mm

610 mm

762 mm

915 mm

1070 mm

Length of Ram

960

1232

1410

1651

2108

Length of Width Ram Bearing

700 x 270

867 x 300

1020 x 330

1130 x 330

1600 x 330

Max. & Min. Distance






From Table of Ram

360x 75

450 x76

510 x75

565x 102

600x 102

B-TABLE

Working Surface of Table

457 x 305

610 x 370

762 x 390

915 x457

1078x 533

Max. Table Travel Horizontal

488

635

787

940

1075

Max. Table Travel-Vertical

330

380

450

525

585

Angular Movement of Table






on Either Slides

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

C-TABLE

(Max Vertical Travel of Tool Slide)

152

190

203

255

300

Maximum Swivel of Tool Head

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

E-SPEEDS & FEEDS

Dia of Clutch Pulley

311

311

311

380

380

Range of Ram Speeds

4

4

4

4

4

(Stroke Per Minute)

16,32,64,96

14,28,42,62

8,16,32,48

10,20,30,50

8,16,32,48

Dia of Motor Pulley

70

70

76

88

88

Range of Table Feed Per






Stroke of Ram

0.220

0.229

0.229

0-22 To 0-88

0-22 To 0-88

Range of Tool Head Feed

hand feed

hand feed

hand feed

hand feed

hand feed

Automatic Tool Head Feed &






Tool Lifting

on order

on order

on order

on order

on order

F-DRIVE ELECTRICAL EQUIPMENT

Power Supply

2HP(1.5kw)

3HP(2.25kw)

5HP(3.75kw)

7.55HP(5kw)

10HP(7.5kw)

Speed Rpm

1440 RMP

1440 RPM

960 RPM

960 RPM

960 RPM

Main Switch Starter (Push Botton Type)

3.5 AMP

5 AMP

5 AMP

5 AMP

3.5 AMP

Weight (approx.)

1200 kgs.

1850 kgs.

2300 kgs.

3500 kgs.

4000 kgs.
